POWER MODULE

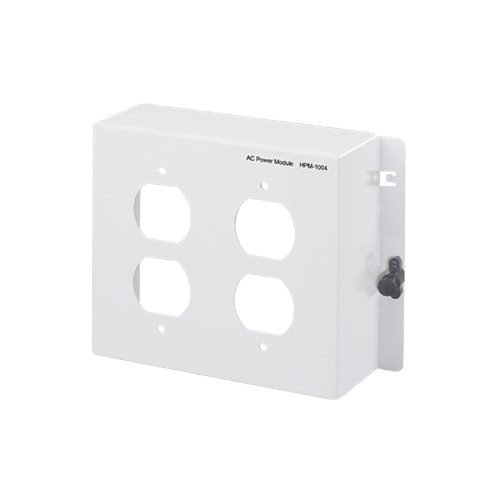

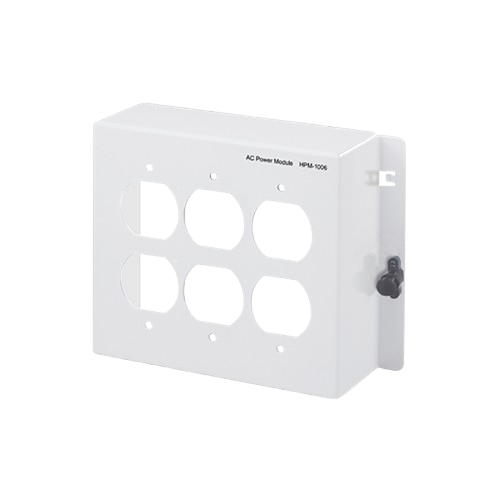

The power solution provides neat and nice management of power supply to each active module. Furthermore the compact sizes of power modules do save space to allocate more modules compare with traditional AC adaptors and power strips. The unique design of DC Power Module brings DC power into the Home Wiring Centre Enclosures. It provides overload/short circuit protection, full-regulated, and high quality DC power for any active modules with 5VDC, 7.5VDC or 12VDC input voltage. The split DC power system separates the DC splitter apart from the DC switching power supply, thus create more space inside the enclosure for more modules capability. The AC Power Bracket provides space for two standard duplex receptacles (not included) and brings the AC power solution into the system.
- Centralized Power Management.
- Multiple DC Output Options.
- Overload and Short Circuit Protection.
- Compact and Space-Saving Design.
Order Information

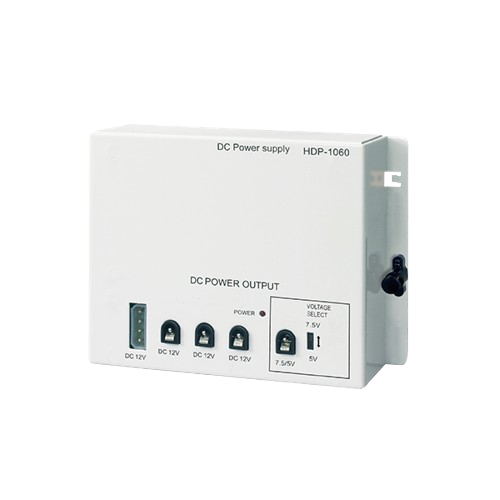

IK-HW-DP106000
60W DC switching power supply-6.3" x 5"
60W DC switching power supply-6.3" x 5"

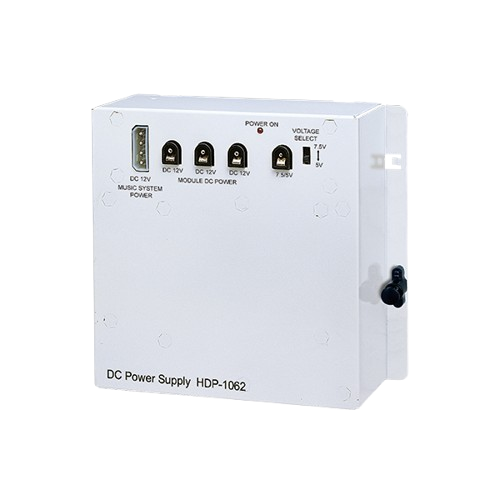

IK-HW-DP106200
60W DC switching power supply with IEC socket-6.3" x 6"
60W DC switching power supply with IEC socket-6.3" x 6"

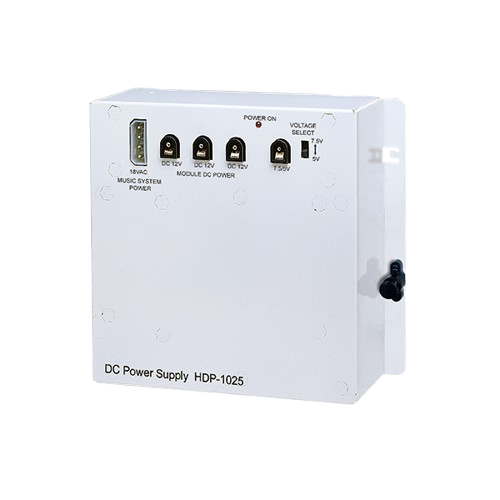

IK-HW-DP102500
25W DC switching power supply plus 18VAC transformer-6.3" x 6"
25W DC switching power supply plus 18VAC transformer-6.3" x 6"

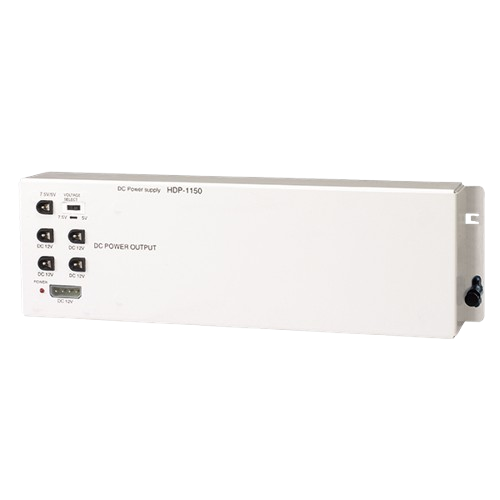

IK-HW-DP115000
150W DC switching power supply-6.3" x 4"
150W DC switching power supply-6.3" x 4"

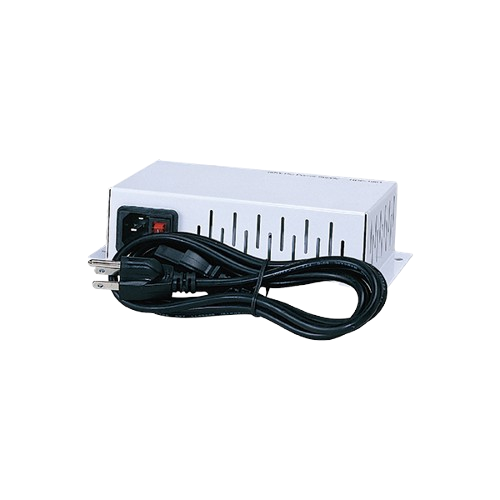

IK-HW-DP106100
60W DC switching power supply with IEC socket, must work with IK-HW-DM100100
60W DC switching power supply with IEC socket, must work with IK-HW-DM100100

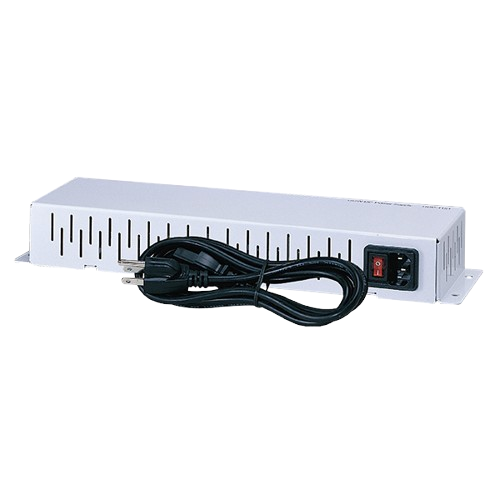

IK-HW-DP115100
150W DC switching power supply with IEC socket, must work with IK-HW-DM100100
150W DC switching power supply with IEC socket, must work with IK-HW-DM100100

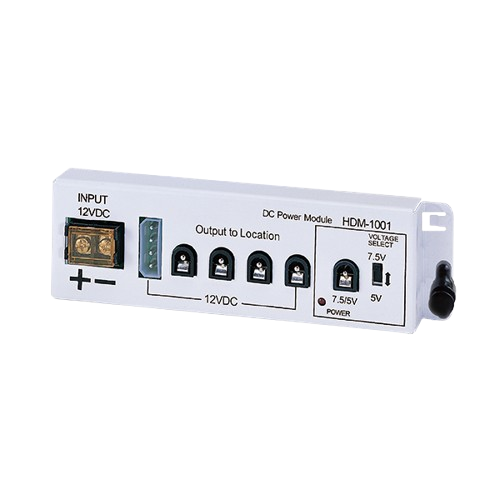

IK-HW-DM100100
DC splitter, working with IK-HW-DP106100 & IK-HW-DP115100-6.3" x 2"
DC splitter, working with IK-HW-DP106100 & IK-HW-DP115100-6.3" x 2"
